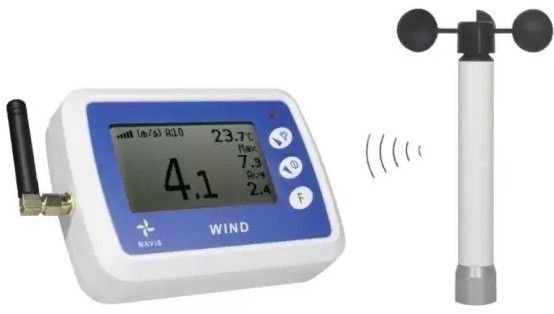

Navis Wireless Anemometer

Link Copied
Business Type Distributor
Power Source Battery
Power 24V
Number Of Flower Anemometer
Click to view more

Product Details

Wind speed measurement range
0,6...50 m/s
Wind direction measurement range
0 - 359 (6 graph resolution)
Temperature measurement range
-30....+60 C
Wind speed units
m/s, km/h, knots, mph
Temperature units
degree C, degree F
Wind speed averaging period
Selectable 2 s, 10 s, 30 s
Wind direction averaging period
10 s
Wind speed resolution
0,1 m/s
Wind direction resolution
degree 6
Wind speed accuracy
+/- 2,5 %, calibration possible in 0,5% steps
Wind direction accuracy
+/- 2,5 , adjustable offset +/- 180 degree
Antenna input
50 Ohm, SMA connector
With standard range sensor
Up to 500 m visible distance
With extended range sensor
Up to 1300 m visible distance
With Yagi antenna
3-4 x nominal range
Power consumption:
Max. 300 mA
Temperature operating range
-30 ... +60 C
Outputs
4 x relay, contact rating 2 A/24 V, programable ON and OFF delays
Alarms
Adjustable max. alarm red light + continuous sound signal , Adjustable pre. alarm yellow light + interupted sound signal
Adjustable pre. alarm yellow light + interupted sound signal Sound signal (integrated buzzer)
85 dB/10 cm
Brand Name
Navis
Application
Crane Applications, Mobile Cranes, Tower Cranes, Bridge Cranes, Lift Applications, All Applications Where Wind Alarm Is Needed
Features
Extremely Easy Mounting Due To Wireless Sensor And Magnetic Mounting,Up To 500 M Range With Standard Range Sensor,Built-in Audible Alarm And Red/yellow Alarm Lights,4 Programmable Alarm Relay Outputs With ON And OFF Delays,2-zone Wind Direction Alarm,Back
Display Type
Back Lighted Graphic LCD
Range
Up To 500 M

Feature

  • Extremely easy mounting due to wireless sensor and magnetic mounting
  • Up to 500 m range with standard range sensor
  • Up to 500 m range with standard range sensor
  • Built-in audible alarm and red/yellow alarm lights
  • 4 programmable alarm relay outputs with ON and OFF delays
  • 2-zone wind direction alarm
  • Back lighted graphic LCD with large numbers
  • Magnetic mounting
  • Up to 4 years sensor battery life, replaceable Lithium battery
  • Easy replaceable anemometer cups
